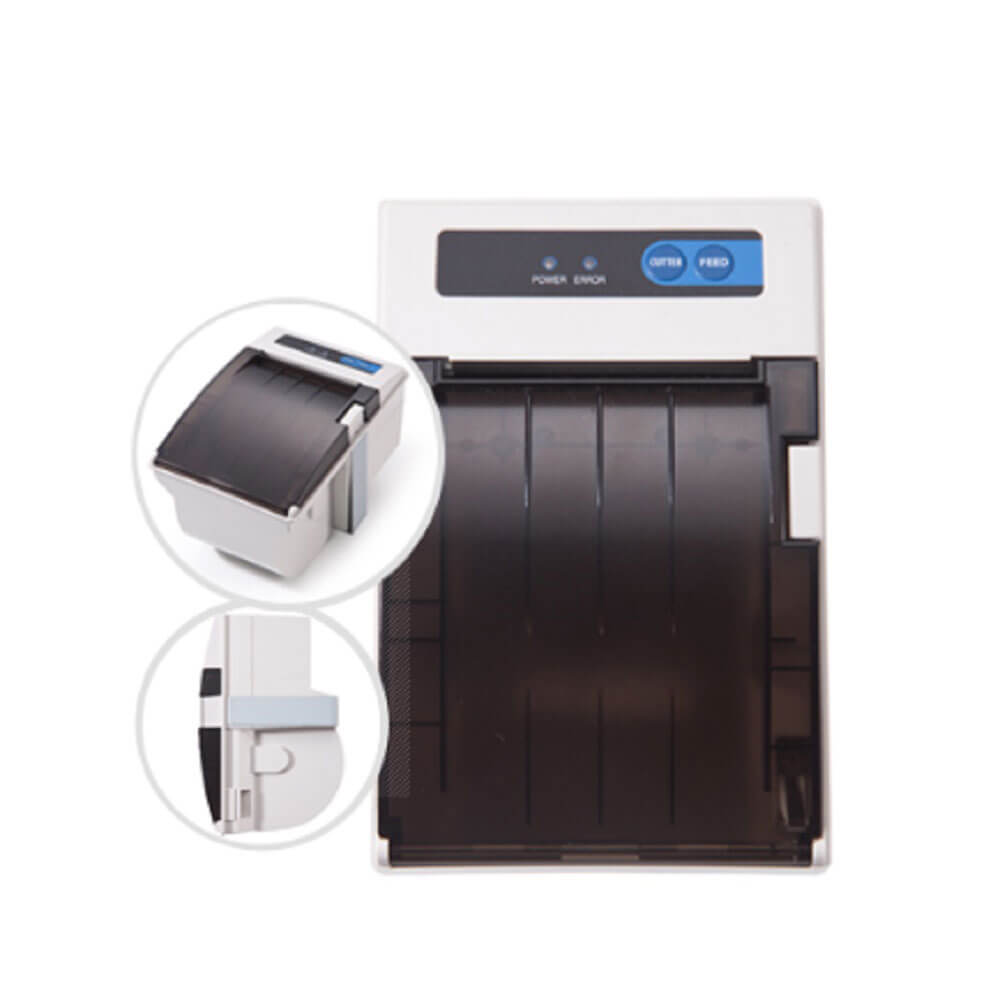

Thermal printer with auto-cutter
| Model | CP260 | CP280 | CP360 | CP380 |
| Characters per line | 42cpl (MAX) | 64cpl (MAX) | ||
| Characters size |
Eng : 9x24 dots, 12x24 dots Kor : 16x24 dots [24x24 dots] |
|||
| Resolution | 203 dpi, 8 dots/mm | |||
| Printing speed | 200 mm/sec (MAX) | 170 mm/sec (MAX) | ||
| Dimensions (mm) | 91.1 x 104.4 x 67.6 | 91.1 x 122.4 x 88.5 | 113.1 x 104.4 x 67.6 | 113.1 x 122.4 x 88.4 |
| Weight | 286g | 336g | 333g | 391g |
| Interface |
· UART(RS-232C or TTL) · USB |
|||
| Paper supplied | Thermal roll paper | Thermal roll paper | Thermal roll paper | Thermal roll paper |
| Paper thickness : 60±5㎛ | ||||
| Barcodes |
1-dimension:Code128, EAN 128, Code39, I2/5, Code93, UPC, EAN, KAN, JAN, CODABAR 2-dimension:PDF417, QR Code, DATA Matrix |
|||
| Driver | Microsoft Windows XP / VISTA / 7 , Windows CE, Linux, Android OS driver compatible | |||
| Input power | 24VDC, 3A OVER | 24VDC, 3A OVER | 24VDC, 3A OVER | 24VDC, 3A OVER |
